Overview:
The contactless fingerprint card is a passive fingerprint recognition device mainly composed of theprocessor chip ofCCM4202S , fingerprint sensor and NFC chip. It has the advantages of durability, corrosion resistance, strong anti-static, small size, low power consumption, high security, etc.
The card completes fingerprint data extracting, processing, template matching, and storage entirely within the CCM4202S, ensuring fast processing. It communicates with outside through radio frequency modulation interface ,and supports custom COS systems, serving as a secure carrier for digital certificates and private keys based on the public key infrastructure (PKI). Key pairs are generated or imported within the fingerprint card, and the private key cannot be exported that ensure the information security of the certificate holder. Additionally, it employs a dual authentication mechanism of "hardware + fingerprint" to ensure the legitimate use of digital certificates and private keys, providing a high-security level certification environment.
It is distinguished by anti-attacks, non-replicability, and inoperability when lost, making it superior in high-security access control systems, digital encrypted wallets and other fields.

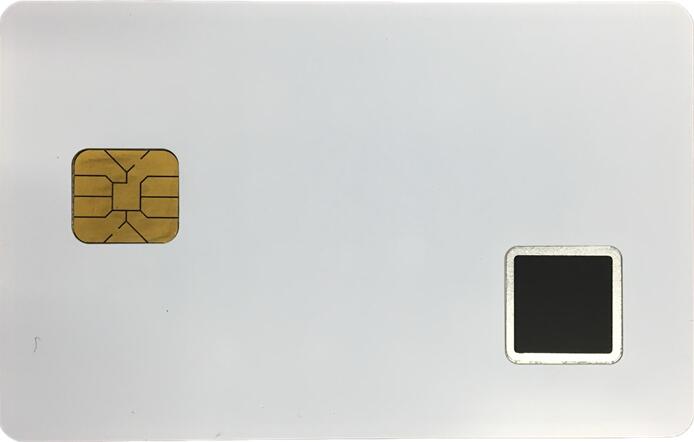

Appearance
Advantages
? High reliability
? Convenient operation
? Supporting multiple application scenarios
? Supporting COS redevelopment
? High performance hardware reduce the pre-processing and featuer matching time
? Non-replicable, unusable when lost
Fingerprint Card Main Controller- CCM4202S
It is designed based on the 32-bit Cortex-M4F core, integrated with 256KB SRAM, 32KB ROM, and 512KB EFlash on the chip.The hardware algorithm coprocessor provides AES, DES/3DES, CRYPTO (RSA, ECC, SM2), SM3, SM4, SHA-0/SHA-1/SHA-224/SHA-256/SHA-384/SHA-512 security algorithms, and a true random number generator.
Performance Indicators
| Parameters | Descriptions |
| Processor (MCU) | CCM4202S |
| Resolution | 508DPI |
| Pixel Array | 160*160 |
| FAR | ＜0.002% |
| FRR | ＜2% |
| Average Matching Time | 600ms |
| Capacity | 10 Fingerprints |
| Data Interface | ISO-7816 & ISO-14443 |
| Algorithm Types | DES、AES、SM4、SHA及SM3、RSA、SM2 |
| Operating Environment | Temperature：-10℃~+50℃ |
| Contactless Distance | 2~3cm |
| Feature | Passive design, power harvesting through the coil |
The fingerprint card has a wide range of applications, including digital signatures, data encryption and decryption, and data storage security. Such as:
? High-security access control systems
? Electronic wallets, digital currency applications, and other fields
? Complete development environment
? Rich driver library
? Complete application solutions
