High-performance information security dedicated SoC design platform—CSOC9000

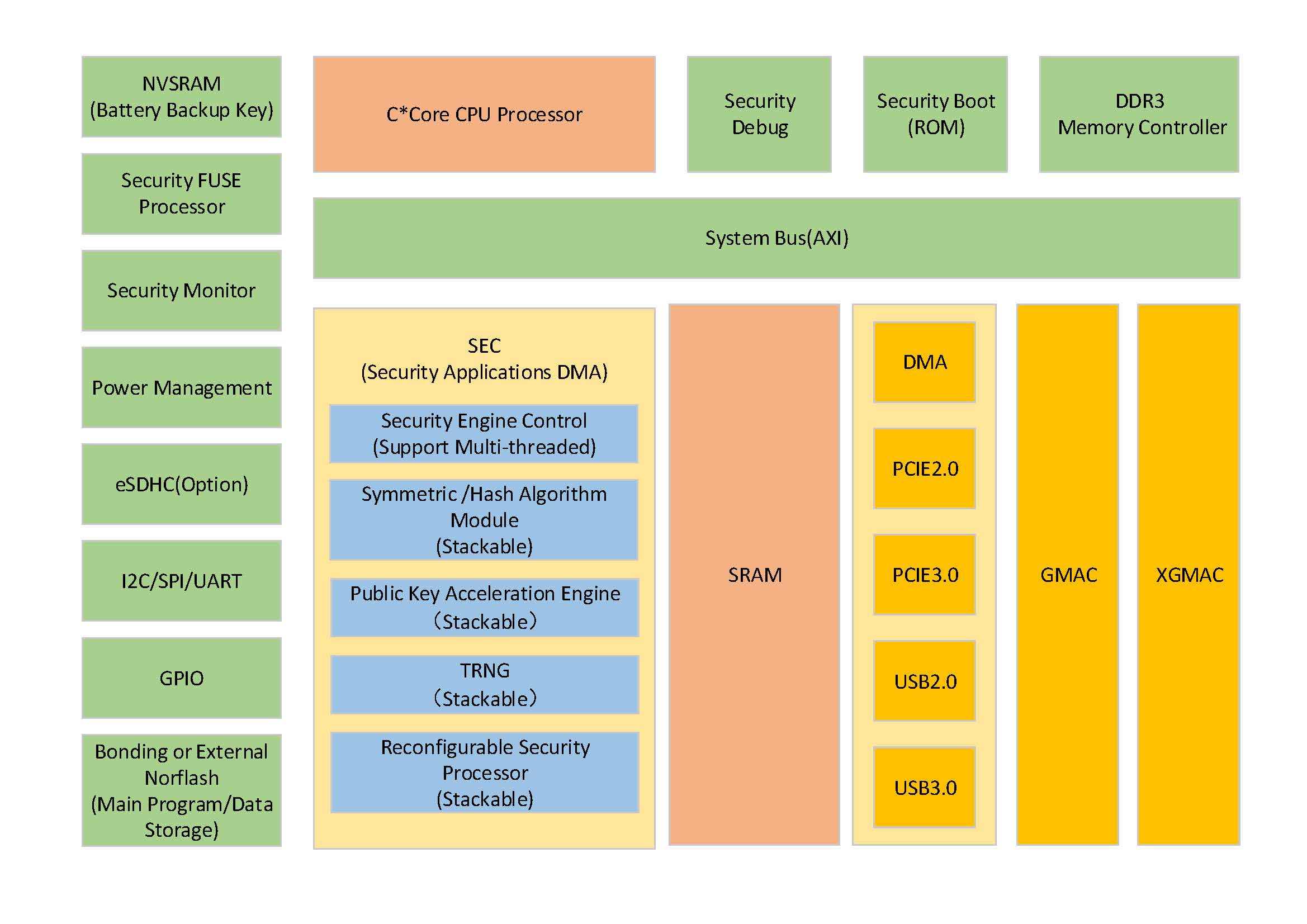

The high-performance information security dedicated SoC design platform—CSOC9000 is based on the C*Core’s 32-bit high-performance information security processor C9000 with independent intellectual property rights.It supports the ISA V2.05 instruction set architecture( Power Instruction Set Architecture). The platform provides multiple high-speed interfaces such as Gigabit Ethernet, PCIE, DDR, etc., and GM cryptography algorithm and international mainstream cryptography algorithm IP. It integrates multiple anti-attack protection methods and common communication interface IP. The security chip designed based on this platform is mainly used in network communication, system control, trusted computing and other fields.

Typical application

1、CCP901T, integrated with high-speed interfaces such as PCIE, GMAC, DDR, and common interfaces such as USB, SPI, UART.It also integrates GM cryptography algorithm which is applied in trusted computing, PCIE encryption cards, and other fields.

2、CCP903T, integrated with PCIE high-speed interface, eMMC storage interface, and common interfaces such as USB, SPI, UART, etc. Besides,it equipped with a security control engine, a public key algorithm hardware accelerator, a reconfigurable symmtric Cryptographic algorithm module, and GM cryptography  algorithm. It is applied in trusted computing, PCIE encryption cards, and other fields.

3、CCP908T, integrated with PCIE3.0, USB OTG (USB3.0) and Gigabit Ethernet high-speed interfaces, SD/eMMC storage interfaces, as well as SPI, I2C, UART and other common interfaces. There is a built-in high-speed encryption engine, a hardware accelerator for public key algorithms, a reconfigurable symmetric Cryptographic algorithm module, and integrated GM cryptography  algorithms. It is used in trusted computing, PCIE encryption cards, and other fields.
